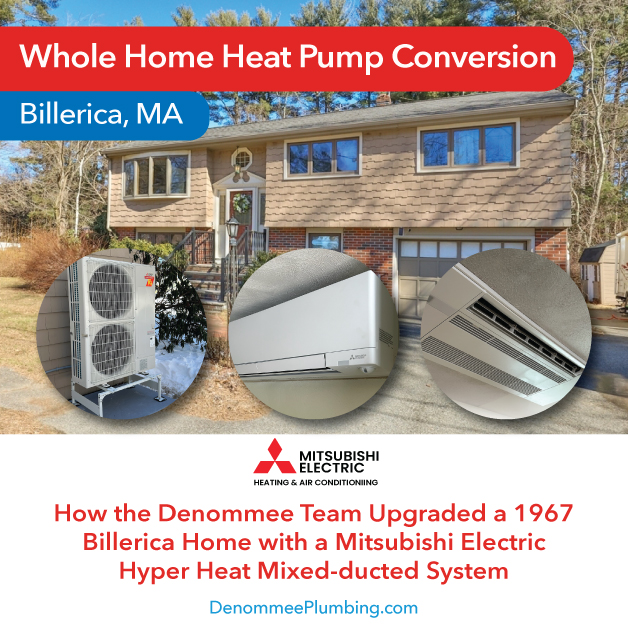

Mitsubishi Electric Hyper Heat Upgrade for a 1967 Billerica Area Home

Whole-Home Heat Pump Conversion in Billerica, MA

If you live in Billerica, MA—or anywhere in the Merrimack Valley—you’ve probably noticed a trend over the last few years:

More homeowners are replacing traditional gas and oil heating systems with high-efficiency cold-climate heat pumps.

And for good reason.

Heat pumps can now provide reliable heating even during New England cold snaps, while also delivering quiet, efficient air conditioning in the summer. For many homeowners, it’s the most practical path toward a more comfortable home, lower operating costs, and fewer maintenance headaches.

In this article, we’ll break down a recent project Denommee Plumbing, HVAC & Electric completed in Billerica, Massachusetts, where our team performed a whole-home heat pump conversion in a 1,500-square-foot single-family home built in 1967.

This installation replaced the home’s natural gas-fired hydronic heat with a modern, mixed-ducted/ductless Mitsubishi system—and also included a 200-amp electrical service upgrade, ductwork improvements, and long-term warranty support.

Quick Summary

Project Location: Billerica, MA
Home Size: ~1,500 SF
Home Age: Built 1967
Goal: Replace natural gas hydronic heat with a whole-home cold-climate heat pump system
Solution Installed: Mitsubishi 36,000 BTU Multi-Zone Mixed-Ducted Hyper Heat system (R-454B refrigerant)
Additional Work Included: Branch box, attic ductwork, 200A electrical upgrade, new panel, outdoor disconnect, attic service wiring and lighting
Warranty: Mitsubishi Diamond Elite 12-year compressor + 12-year parts
Included: First-year maintenance included at end of year with Peace of Mind membership

Why Homeowners in Billerica Are Converting from Gas Hydronic Heat to Heat Pumps

Many homes built in the 1950s–1970s in Billerica and nearby towns (Chelmsford, Bedford, Tewksbury, Burlington, Westford) share similar characteristics:

Hydronic heating (boiler + baseboards or radiators)
No central ductwork
Older electrical services (100A or 150A)
No air conditioning, or only window units
Finished basements or attic spaces that are hard to heat evenly

A modern cold-climate heat pump solves several common pain points at once:

Heat pumps can provide both heating and cooling

Instead of maintaining separate systems (boiler + AC), homeowners get one integrated comfort system.

Better comfort in “problem zones”

Basements, additions, and upstairs bedrooms often struggle in older homes. Mixed systems allow targeted zoning.

Electrification readiness

Many homeowners want to reduce reliance on fossil fuels and prepare for the long-term future of home energy in Massachusetts.

More predictable maintenance

Hydronic systems can be reliable, but they also come with components that often fail over time:

circulators
expansion tanks
zone valves
pressure reducing valves
boiler controls

A properly installed heat pump system simplifies a lot of that.

The System Installed: Mitsubishi Hyper Heat Multi-Zone Mixed-Ducted (3 Ton)

For this Billerica home, Denommee furnished and installed a 3.0 ton, 3-zone mixed-ducted Mitsubishi Hyper Heat system designed for full-home comfort.

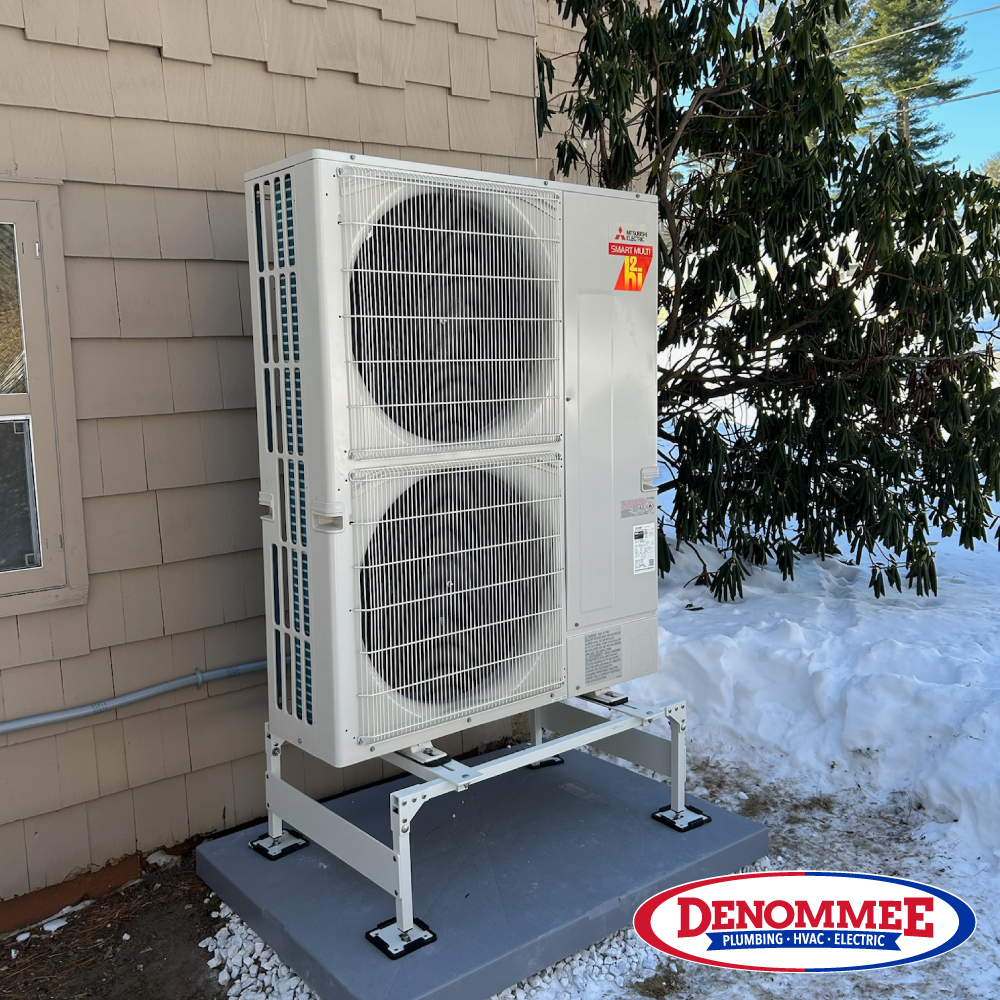

Outdoor Unit (Heat Pump Condenser)

Make: Mitsubishi
Model: MXZ-SM36NLHZ
Type: Variable Output Heat Pump Inverter
Cold-Climate Rating: Hyper Heat
Refrigerant: R-454B

This is a high-performance Mitsubishi platform designed for New England winter heating.

Indoor Units: Mixed-Ducted + Ductless for Smart Zoning

One of the biggest reasons homeowners choose a mixed system is flexibility. Instead of forcing one approach across the whole house, you can use the right indoor unit type for each space.

This project included three indoor zones:

1) Ducted Air Handler (Main System)

Model: SVZ-AP18NL (multi-positional air handler)

This unit allows the home to deliver heating/cooling through ductwork—ideal for:

multiple rooms on one floor
areas where homeowners want invisible comfort (no wall units)
evenly distributed air

2) One-Way Ceiling Cassette

Model: MLZ-KX12NL

A one-way ceiling cassette is a strong option for homeowners who want:

a clean look
less wall space taken up
strong airflow control
quieter operation

It’s also a great solution for bedrooms and smaller living spaces.

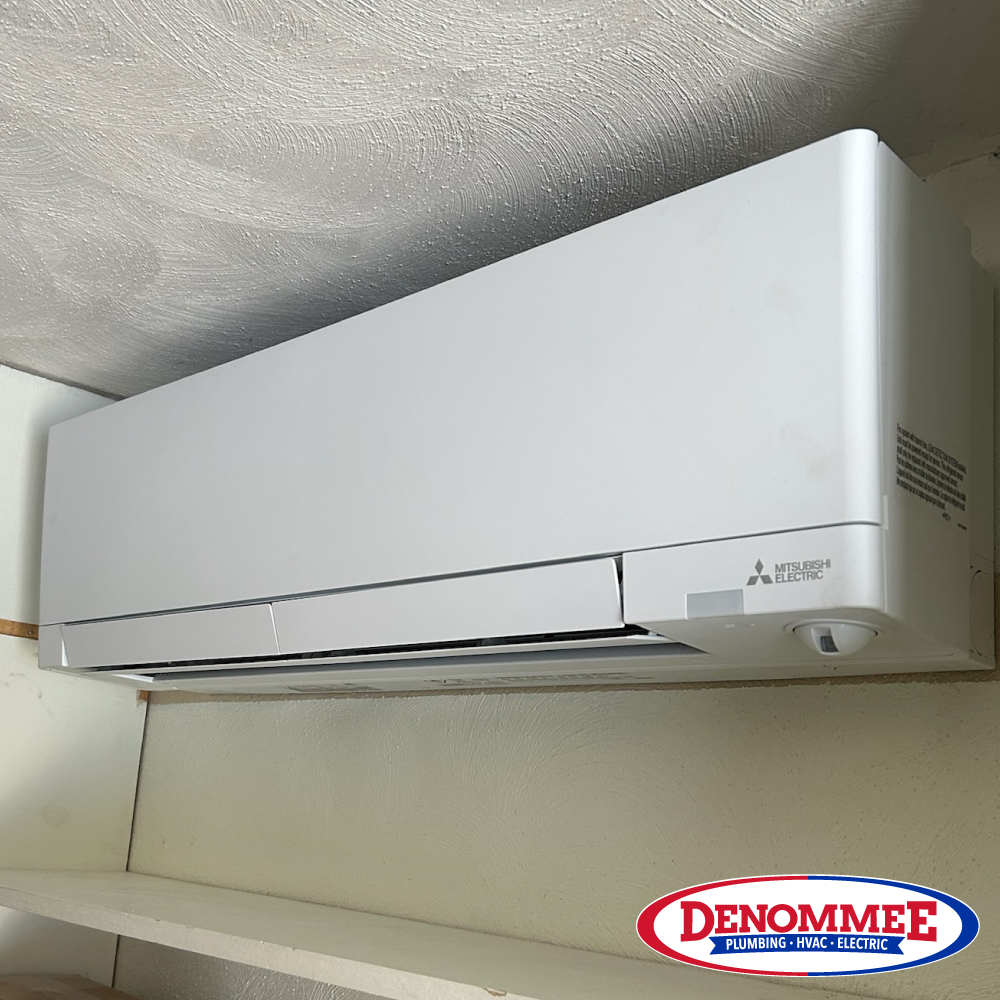

3) Wall-Mounted Unit (Basement Zone)

Model: MSZ-FX09NL (basement)

Basements are a common comfort issue in Billerica homes. They’re often:

cooler in winter
humid in summer
finished later, without ductwork

A dedicated ductless wall unit provides efficient heating and dehumidification right where it’s needed—without major remodeling.

Efficiency Ratings: What SEER2 and HSPF2 Mean for Homeowners

This system’s AHRI listing shows excellent performance:

AHRI # 215712162
SEER2: 20.35
HSPF2: 11.25
Cooling Capacity: 36,000 BTU
Heating Capacity:

42,000 BTU @ 47°F
42,000 BTU @ 5°F
42,000 BTU @ -13°F

What that means in real terms

This system is designed to:

cool efficiently during humid Massachusetts summers
maintain strong heating output even during deep winter conditions
reduce energy waste by modulating output instead of cycling on/off

Why This Project Included a Branch Box (And Why It Matters)

This installation included:

Branch Box: (1) new branch box

A branch box is a critical component in many Mitsubishi multi-zone systems. It functions as a refrigerant distribution hub, allowing the outdoor unit to serve multiple indoor zones.

Benefits of using a branch box

Cleaner, more organized piping design
Better zone control
Improved serviceability
Often reduces line-set complexity in multi-zone layouts
Helps support mixed-ducted + ductless configurations

In short: it makes the system more professional, more maintainable, and more reliable.

Installation Best Practices That Separate a High-End System from an Average One

A Mitsubishi system is only as good as the installation. That’s why Denommee’s scope includes commissioning steps that many contractors skip or rush.

This project included:

Nitrogen pressure testing of the refrigeration circuit
Vacuum to under 500 microns
Correct refrigerant charging to manufacturer specifications
Proper low-voltage controls wiring
Labeling/tagging shutoffs
Full commissioning and warranty registration
Clean worksite and documentation handoff

These details matter.

Skipping them is one of the biggest reasons homeowners experience:

refrigerant leaks
premature compressor issues
noisy operation
poor heating performance
short cycling
warranty disputes

Ductwork Installation: Why It Was Necessary in This Home

Because this was a mixed-ducted project, ductwork was part of the scope.

Attic Ductwork Scope

Denommee installed a new 1.5-ton horizontal high-static ductwork system in the attic, including:

Air handler hung from roof rafters (for noise attenuation)
Drain pan and flood shutoff switch
Galvanized hard-pipe trunk line
Premium air filter box
3-way diffusers

Why attic air handlers are a smart approach in older homes

In many 1960s homes, attic ducting can be a clean solution because:

it avoids opening finished walls
it can deliver comfort to upstairs bedrooms
it keeps equipment out of living spaces
it allows better room-to-room balancing than ductless-only layouts

Electrical Work: The Hidden Requirement in Many Heat Pump Conversions

One of the most overlooked realities of whole-home electrification is this:

Your HVAC upgrade may require an electrical upgrade.

This project included a full 200-amp service upgrade, which is common for whole-home heat pump conversions.

Electrical Scope Included

Add heat pump feed
2-pole breaker
New line voltage feed
Outdoor whip & disconnect
Attic service wiring and switched lighting

200 Amp Upgrade Included

New panel (up to 40 slots)
New service connection
Increased feed

Why a 200A upgrade matters

Heat pumps are efficient—but they still require dedicated circuits and proper load calculations. A 200A panel provides:

room for backup heat strip circuits
safe capacity for future electrification (EV charger, induction range, heat pump water heater)
cleaner code compliance
fewer nuisance breaker trips

And importantly: Denommee can handle this in-house, instead of subcontracting it out.

Warranty and Long-Term Support

This project included:

Denommee Warranty

1-year 100% labor/installation warranty on parts and equipment

Mitsubishi Warranty (Diamond Elite)

12 years compressor
12 years parts

That’s a major benefit of using an Elite-level contractor with the correct installation and registration process.

First-Year Service Included (A Big Deal for Heat Pump Performance)

At the end of the first year, Denommee includes a full cleaning and maintenance visit—free with installation, through a Peace of Mind Service Program membership.

This is not just a “nice perk.”

It’s important because:

filters and drains need checking after a full year of operation
airflow balancing can be optimized after real-world usage
early issues (if any) are caught under warranty conditions
the system stays efficient and quiet long-term

Why Homeowners Choose Denommee for Whole-Home Heat Pump Conversions

Heat pump projects aren’t just HVAC.

A real whole-home conversion can involve:

HVAC installation
ductwork
electrical service upgrades
permitting
inspections
controls setup
manufacturer warranty registration

Denommee’s unique value is that homeowners don’t need to coordinate multiple contractors. The work is designed, installed, and commissioned as a complete system.

Denommee homeowners benefit from:

Mitsubishi Electric Diamond Elite contractor expertise
In-house licensed electricians
Experienced ductwork fabrication and installation
Code-compliant permits and inspections handled properly
Clear, upfront pricing
Peace of Mind service memberships for long-term support

Where Denommee Supports Heat Pump Upgrades

Denommee Plumbing, HVAC & Electric supports homeowners across a wide service area, including:

Heat Pump Upgrades in Billerica, MA

If you own a 1950s–1970s home in Billerica with a boiler or hydronic heat, mixed-ducted heat pumps can be one of the best ways to add AC and modern comfort without major remodeling.

Heat Pump Upgrades in Chelmsford, MA

Chelmsford homes often have similar layouts—basements, attic spaces, and older heating systems that are excellent candidates for Mitsubishi Hyper Heat.

Heat Pump Upgrades in Burlington, MA

Burlington homeowners frequently combine heat pumps with electrical upgrades and weatherization planning for better long-term performance.

Heat Pump Upgrades in Bedford, MA

Bedford homes often benefit from ducted attic air handlers paired with ductless zones for additions and finished basements.

Heat Pump Upgrades in Westford, MA

Westford renovations are a common trigger point for homeowners to electrify and replace aging hydronic systems.

FAQ: Mitsubishi Hyper Heat Heat Pumps for 1960s Homes in MA

Can a heat pump really replace gas heat in Massachusetts?

Yes—especially cold-climate systems like Mitsubishi Hyper Heat, which are designed for reliable heating in sub-zero conditions.

Do I need ductwork for a whole-home heat pump?

Not always. But mixed ducted/ductless systems are often the best solution for comfort, appearance, and room-to-room balance.

Why would my project need a 200 amp upgrade?

Many older homes have limited electrical capacity. Whole-home heat pump conversions often require additional dedicated circuits and space in the panel.

Is R-454B refrigerant better?

R-454B is a next-generation refrigerant with a significantly lower global warming potential than older refrigerants. It’s part of the industry shift toward more environmentally responsible systems.

How long do Mitsubishi heat pumps last?

With correct installation and maintenance, many systems last 15–20 years. The key is proper commissioning, airflow setup, and annual service.
